Nano-silicon is a new generation of optoelectronic semiconductor material, which has a wide gap energy

semiconductor and is also a high-power light source material. It can be combined with graphite or carbon

nanotubes, or nano titanium nitride, etc., to make a negative electrode material for lithium batteries, which

can improve the capacity and service life of lithium batteries.

ATS nano dispersion mechanism to prepare nano silicon dispersion solution

In this experiment, we used an ATS nanodispersion machine to disperse nano silicon powder in aqueous

medium to form a highly dispersed, homogenized and stabilized nano silicon water-based slurry with higher

activity and easy addition.

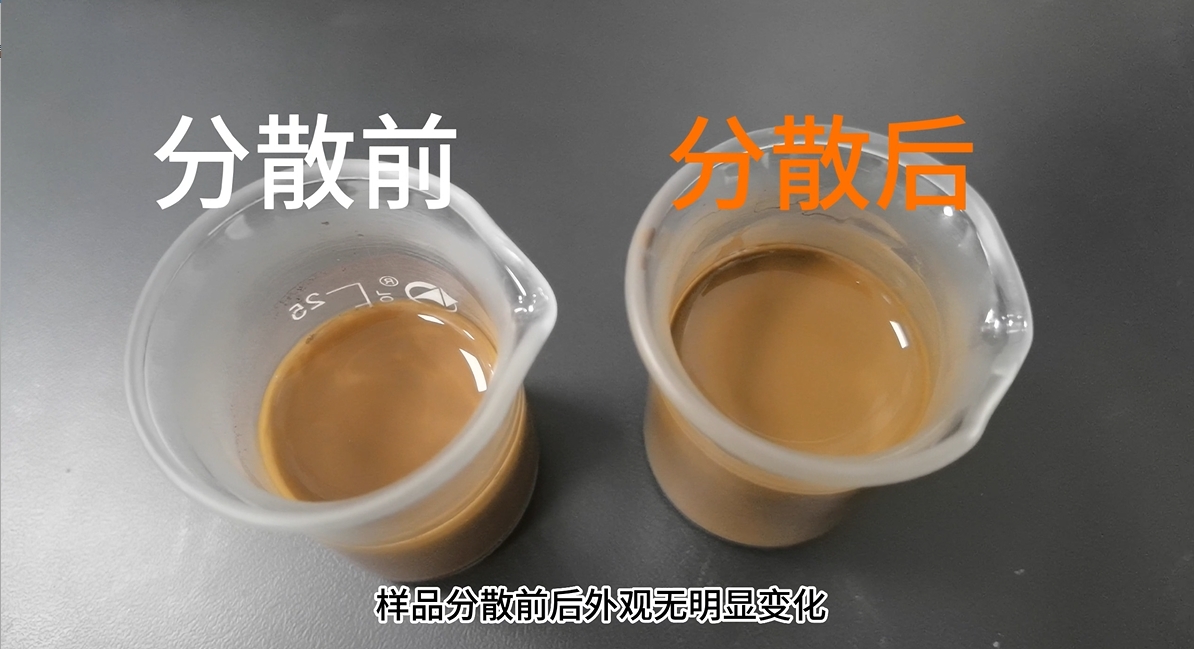

    The appearance of nano silicon paste before and after dispersion had no obvious change

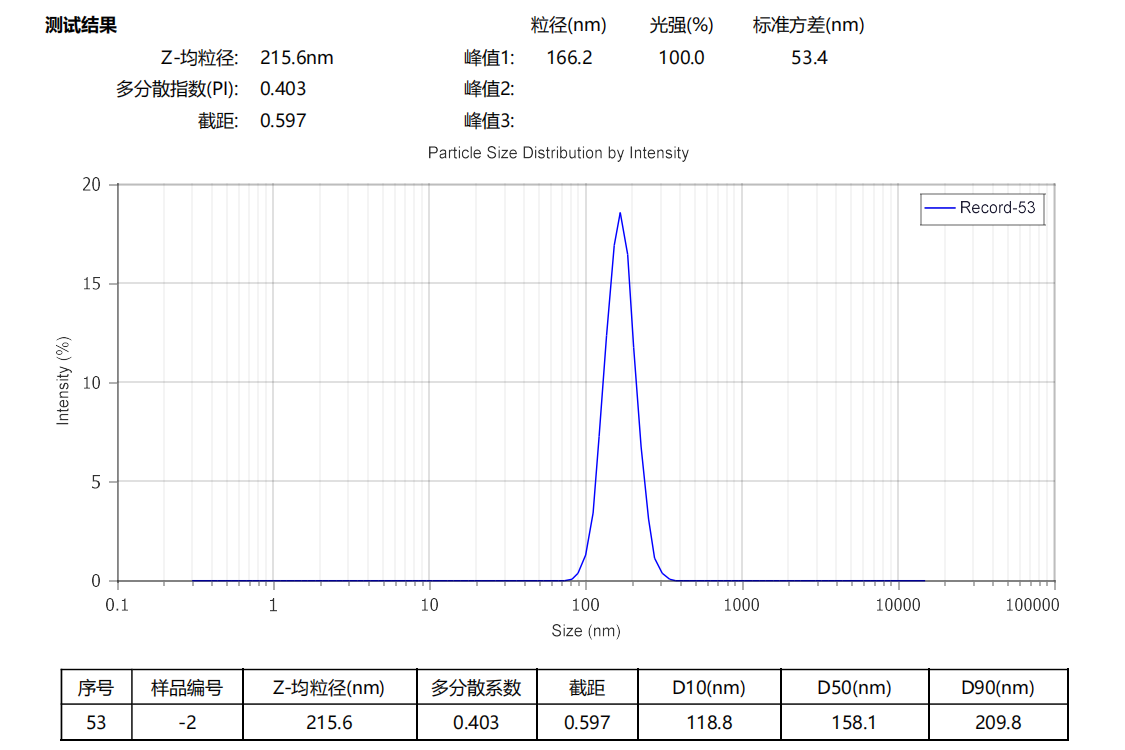

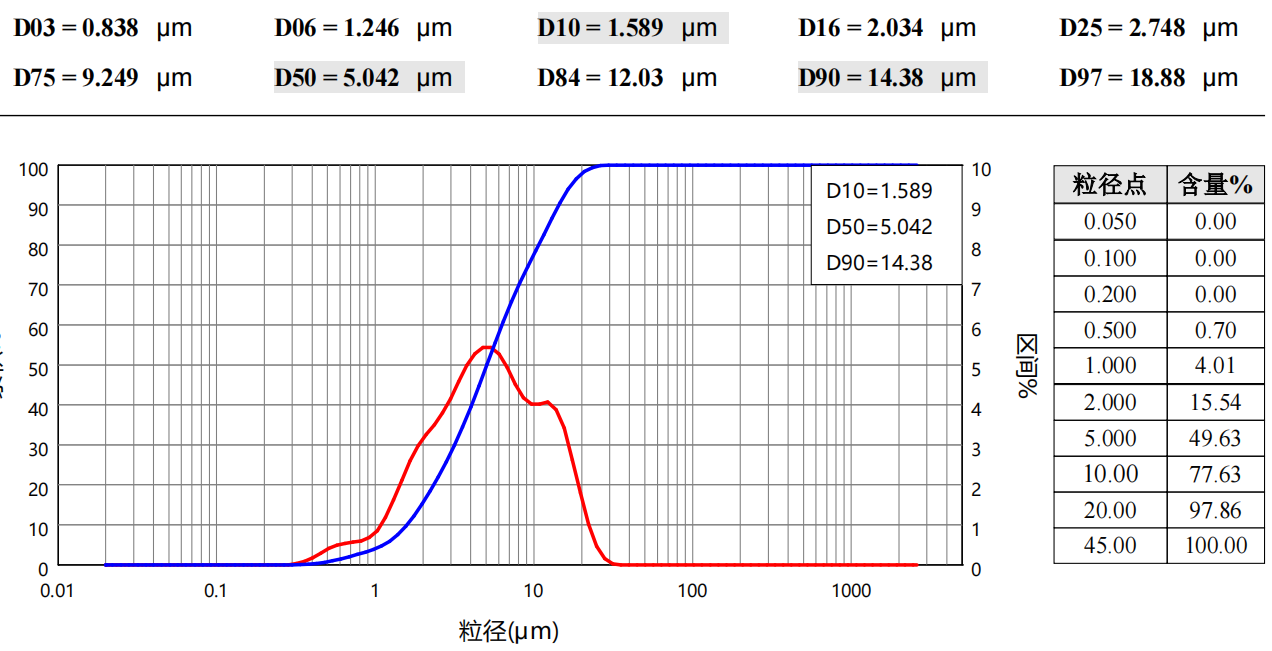

The particle size of D90 decreased from 14.38μm to 209.8nm after the nano silica slurry was dispersed by ATS

 nano dispersion machine

                                                                    Before

                                                                       After
