Alumina is aluminum oxide, commonly known as bauxite, corundum, is a white powder, insoluble in water. Because of its high melting point, up to 2054 ° C, it is a better refractory material. Alumina is an important material for industrial applications as well as other scientific, engineering and technological fields. It is used in everything from building materials and abrasives to biomedical devices and chemical catalysts.

Preparation experiment of ATS alumina nano-size paste

Experimental technology

ATS nano dispersion machine high pressure and low temperature treatment 3 times

Experimental purpose

D50 is less than 250nm

Experimental result

A. Experimental phenomena

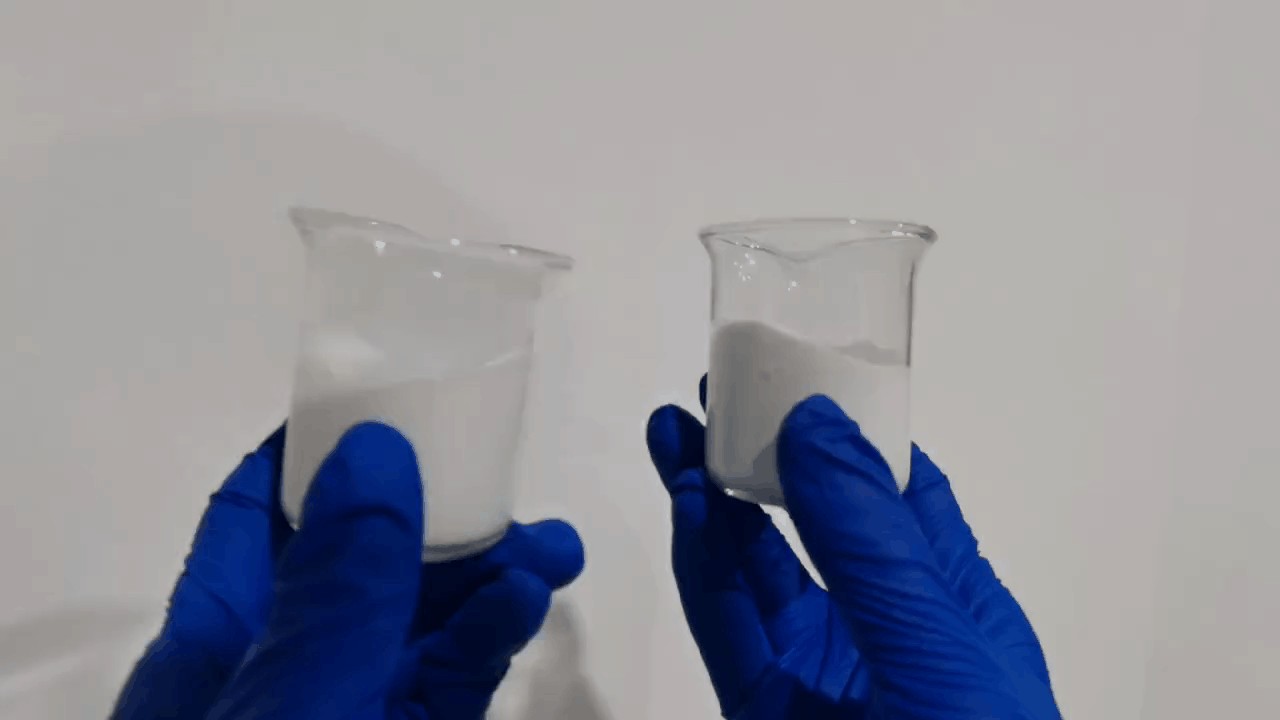

There was no obvious change in the appearance of alumina nanosize after preparation

                                 (Left is before preparation, right is after preparation)

B. Particle size observation

By comparing the particle size diagram before and after the preparation of alumina nano-paste, it can be found that the particle

 size of D50 decreases from 348nm to 234.7nm, which realizes the experimental expectation.

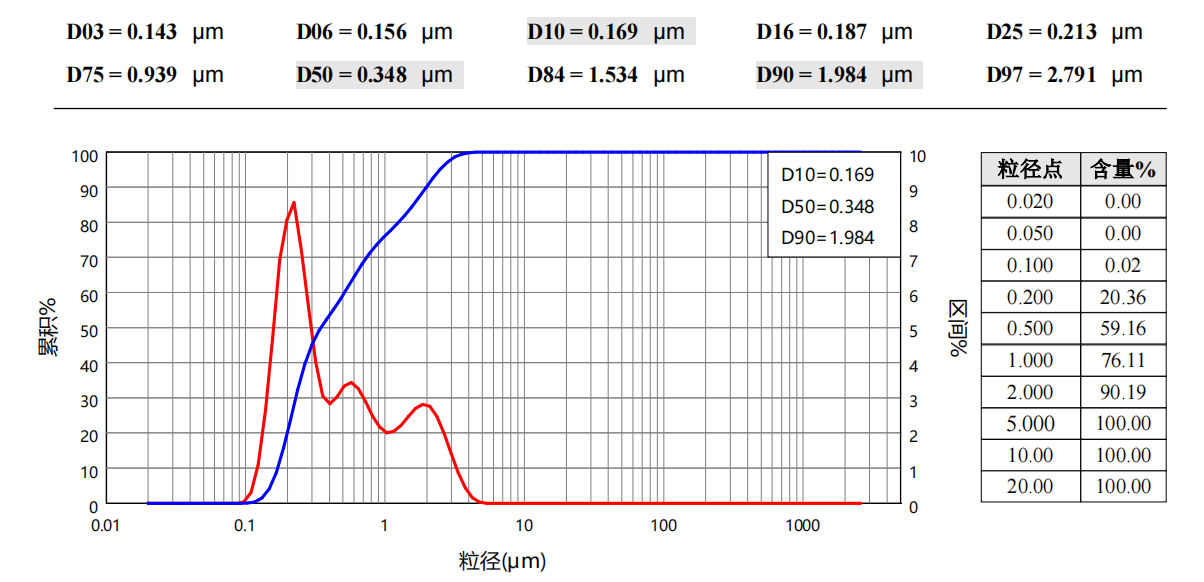

                                                                  Before

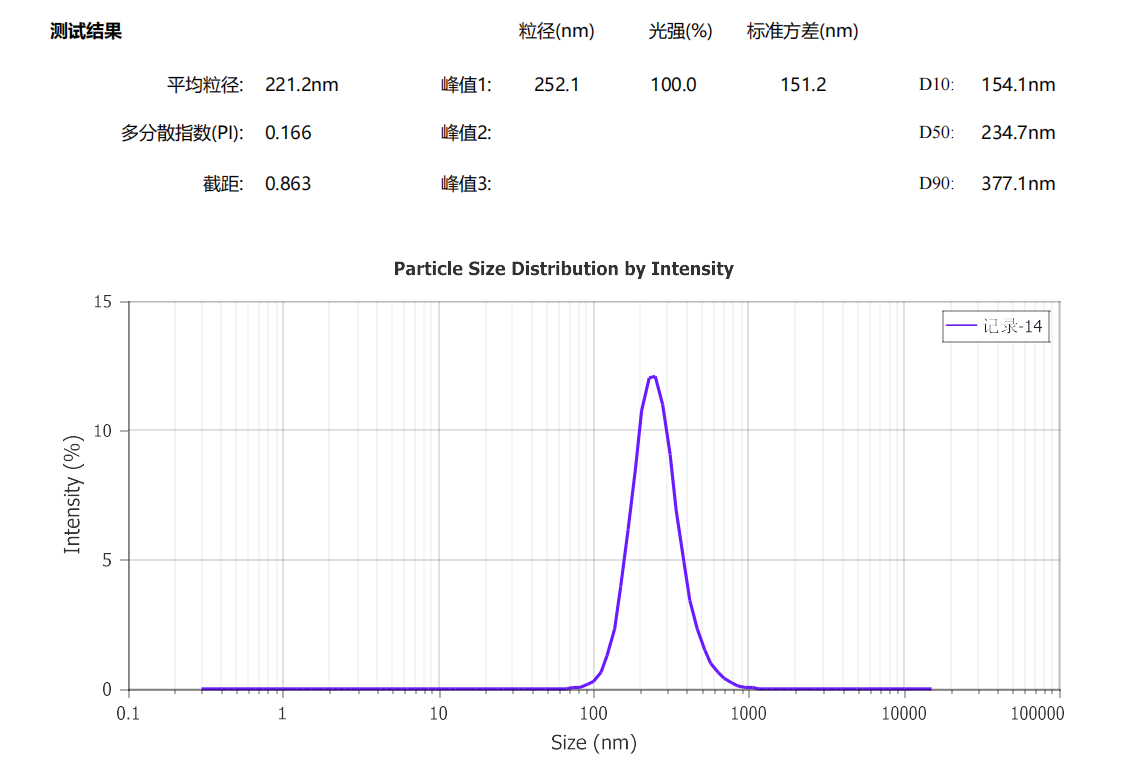

                                                                          After
