Pilot Type MicroJet Homogenizer



Product Introduction

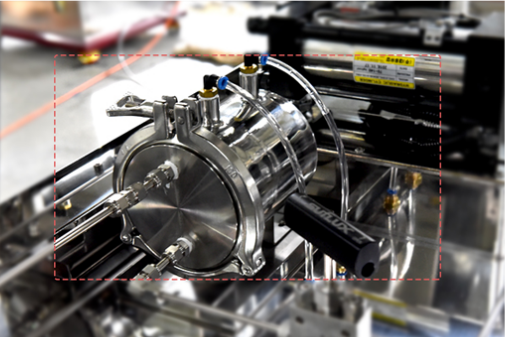

Pilot type microJet homogenizer equipped with diamond interaction chamber. It has unique homogeneous dispersion effect, efficient and stable structural design, and is used for homogeneous dispersion treatment of products in various industries.


Main Applications
● Reduction in particle size of submicron and nanometer sized particles
● Cell disruption
● Depolymerization
● Immiscible liquid emulsion
● Solid-liquid suspension
● Liposomes
● Vaccine adjuvant（MF 59/AS03）
Main Features
● Conveniently washing
    — Back flash system allows convenient cleaning in the event of chamber blockage.



● Prevent damage to samples
    — Prevent damage to samples caused by heat generated after passing through the chamber



● Secure safety with external cases
    — Install the external casing on the piping line, excluding the specimen filler



● Pressure Regulating Hydraulic Unit Control
    — Hydraulic unit control allows pressure control in the chamber



Specifications
ModelsNH 500

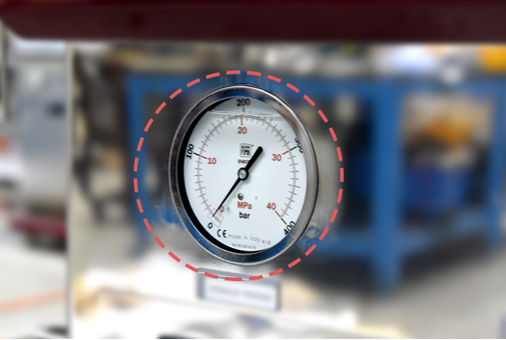

Max. pressure2000bar
Flow rate30L/H
Pump systemHydraulic unit system
Dimension850(W)X800(D)X1500(H)mm
Interaction chamber100μm(Z/Y type）
Weight800kg
Working principle

The high-pressure fluid quickly passes through the narrow gaps in the dispersion unit. At this time, the pressure in the fluid drops sharply to form a supersonic flow rate. The particles in the fluid collide, cavitate and leak. The shear force acts on splitting nanometer-sized molecules. Exists in a completely homogeneous state. Its unique diamond micro-channel beaming technology can obtain extremely small and uniform nano-scale particle size distribution results, and the hydraulic booster power mode can provide stable working pressure up to 200Mpa.

Why choose us
Twenty years of industry experience and strong brand strength
-Established in 2001, with 20 years of industry experience
-The factory covers an area of more than 2,000 square meters and has many R&D engineers in the industry
-5S management, strict quality control
-The working environment is clean, tidy and orderly, ensuring delivery cycle
-Products are fully inspected before leaving the factory to avoid substandard products leaving the factory.
-In line with international quality testing standards, all finished products have passed international CE system certification.
-Quality service, high reputation in the industry
-Professional pharmaceutical equipment, providing process solutions
-Professional and technical personnel provide service support before, during and after sales
